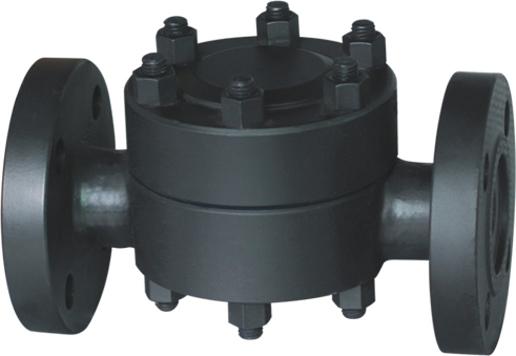

高温高压疏水阀 Disc trap of high temperature and pressure

产品介绍：蒸汽保温型高温高压圆盘式蒸汽疏水阀阀体材料采用合金钢制造，能耐550℃高温，动作灵敏，工作质量高，适用于高温高压恶劣工况下的疏水工作，是高压过热蒸汽管线和高压过热蒸汽设备最理想的疏水阀之一。
高温高压疏水阀结构特点：

1、阀内部装有自动吹除装置，新型皇冠式阀片，密封极为可靠。蒸汽保温装置，高效节能。
2、可迅速排除设备启动时的空气及凝结水，排量大，漏汽率小。
3、抗腐蚀性强，动作可靠，经久耐用。
4、在工作压力范围内，无需调整，节能效果显著。

Introduction:The valve body of the disc trap of high temperature and pressure is made of alloyed steel.It can operate in the environment of 550℃ with agile action and high quality.It is appropriate for the water discharge in the environment of high temperature and pressure.It is one of the optimal traps for the steam pipelines and steam equipment of high pressure.
Structure:1.The automatic blowing equipment is equipped inside the valve.With new crow-type valve disc and reliable sealing performance;warm-keeping,high effective and energy-saving;
2.Being able to rapidly discharge the gas and condensed water when started,with large amount of water discharged,and small rate of steam leakage;
3.Strong abilities to resist corruption and enduring performances.
4.There needs no adjustment within working pressure,excellent,excellent abilities to save energy.
高温高压疏水阀 零件材料和性能参数Main parts and specifitions

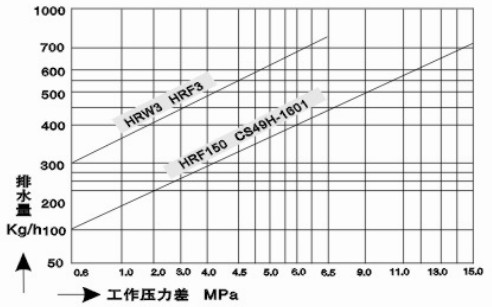

高温高压疏水阀技术参数表 Technological parameter date

高温高压疏水阀 订货须知

订货时请填写《规格书》或注明以下内容：
1、若订货前未选定型号，请向我们提供使用参数:1.公称通径，2.流体性质（包括公称压力、温度、粘度或酸碱性），3.阀体、阀芯材料。
2、若已经由设计单位选定我公司的高温高压疏水阀型号，请按型号直接向我司经营部订购；
3、当使用的场合非常重要或管路比较复杂时，请您尽量提供设计图纸和详细参数，由我们的专家为您审核把关。
