CS44F膨胀式疏水阀
产品名称:CS44F膨胀式疏水阀
产品型号:CS44F膨胀式疏水阀
咨询电话:021-51602737
传真:021-51602737
角式膨胀疏水阀
 角式膨胀疏水阀
CS44F膨胀式疏水阀
 CS44F膨胀式疏水阀
LSF-A膨胀式疏水阀
 LSF-A膨胀式疏水阀
    产品介绍

    CS44F膨胀式疏水阀 Theraml static bellow steam trap

    产品介绍:液体膨胀式的疏水阀的热敏感原件为注满易挥发的波纹管,启闭阀门。
    CS44F膨胀式疏水阀结构特点:

    1、排水温度可以调节在70~100之间,使用方便。
    2、能够阻止高温凝结水的排放,保持蒸汽管线的热能。
    3、连续排放,没有噪音。蒸汽压力的小波动没有影响使用。
    4、结构简单,安装方便,随意。
    5、具有良好的排空性能,不怕冻。零泄漏,背压率达到75%以上。
    Introduction:The heat sensing parts of bellow trap is the volatile bellow and check valve.
    Structure:1.The temperature for discharging water ranges from 70℃ to 100℃.
    2.Able to resist the discharge of condensed water of high temperature and keep the heat of the steam piplines.
    3.The discharge for discharge of condensed water in continuous way without noise.The slight change of the steam pressure will not affedt its operation.
    4.Simple structures will facilitate installation.
    5.The smount of condensed water discharged will rise through the diameter expansion of the bellow.
    6.Excellent abilities to discharge gas.No leskage;the rate of back pressure up to ablove 75%

    液动膨胀式蒸汽疏水阀

    CS44F膨胀式疏水阀技术参数表 Technological parameter date


    Model
    产品型号

    Nominal diameter
    公称通径(DN)

    Connection
    连接方式

    Pressure rating(MPa)
    使用压力

    Max allowable(℃)
    最高允许温度

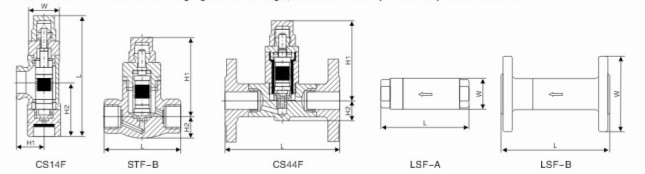

    Extermal dimensions(mm)
    外型尺寸

    Re.weight
    参考重量(Kg)

    L

    H1

    H2

    W

    CS14F-16C

    15~25

    Thread 螺纹
    (角式)

    0.05~1.6

    220

    157

    38

    73

    46

    1.6

    32

    175

    44

    80

    56

    2.5

    40

    185

    51

    90

    62

    3

    50

    195

    60

    100

    75

    3.4

    STF-B-16C
    (STB)
    (CS14F)

    15~20

    Thread 螺纹
    (直通式)

    0.01~1.6

    220

    95

    110

    30

    53

    4.2

    25

    105

    4.5

    32~40

    110

    155

    40

    60

    5

    50

    120

    STF-C-16C
    (STC)
    (CS44F)

    15~20

    Flange 法兰
    (直通式)

    150

    110

    30

    53

    7.7

    25

    160

    9

    32

    210

    155

    40

    60

    1.2

    40~50

    230

    9

    LSF-A

    15~20

    Thread 螺纹
    (立式)

    0.01~1.6

    220

    125





    44

    1.2

    25

    130

    48

    1.4

    32~50

    150

    55
    64
    73

    2

    LSF-B

    15

    Flange 法兰
    (l立式)

    150





    95

    2.6

    20

    150

    105

    3

    25

    160

    115

    3.4

    32

    230





    135

    5.5

    40

    145

    5.9

    50

    160

    6.7

    CS44F膨胀式疏水阀订货须知

    订货时请填写《规格书》或注明以下内容:
    1、若订货前未选定型号,请向我们提供使用参数:1.公称通径,2.流体性质(包括公称压力、温度、粘度或酸碱性),3.阀体、阀芯材料。
    2、若已经由设计单位选定我公司的疏水阀型号,请按型号直接向我司经营部订购;
    3、当使用的场合非常重要或管路比较复杂时,请您尽量提供设计图纸和详细参数,由我们的专家为您审核把关。
